CUEWASH 300B is a battery-powered IP65 outdoor-rated LED wash light featuring (15) 20W RGBL LEDs that offer outstanding color mixing with up to 5,000 lumens output from an extremely compact, yet rugged form factor. CUEWASH delivers bold, saturated, flicker-free colors with a high CRI and calibrated white capabilities that maintain brightness throughout the color spectrum. A standard 10º beam angle delivers uniform light dispersion with optional diffusion lenses for expanded coverage and optional detachable barndoors. CUEWASH 300B features a 21V lithium battery that can operate for up to 20 hours and features TRUE1 compatible power IN/THRU connections for the option to operate on AC power. The fixture can be controlled via hardline DMX, LumenRadio CRMX, or Bluetooth control via the Vision Control App for completely flexible wireless control. IP65-rated and road-worthy with fanless operation, along with an optional 4-unit charging chase with accessory holders.
CUEWASH 300B
15X20W IP65-Rated RGBL Battery-Powered Wash Light
Key Features
In Depth
• 15 x 20W 3-in-1 RGBL LED Chips
• High Color Fidelity
• Up to 5,500 Lumen Output
• Linear 16-bit Dimming w/ 4 Dimmer Curves
• 10º Beam Angle

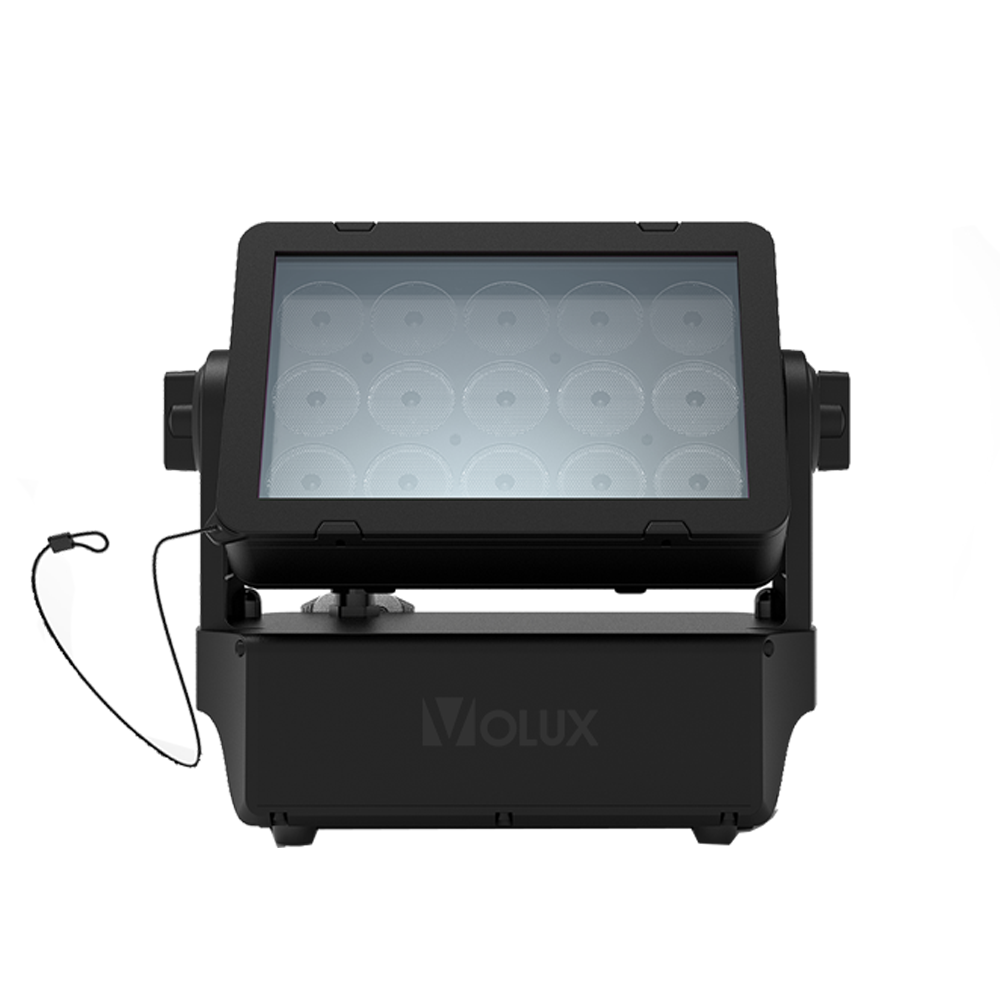

• Optional 25º or 60×10º Magnetic Diffusion Lens
• Virtual Color Gel Presets
• Built-In Color Scroll & Fade FX
• Variable Color Temperature Control
• User Selectable Refresh Rates

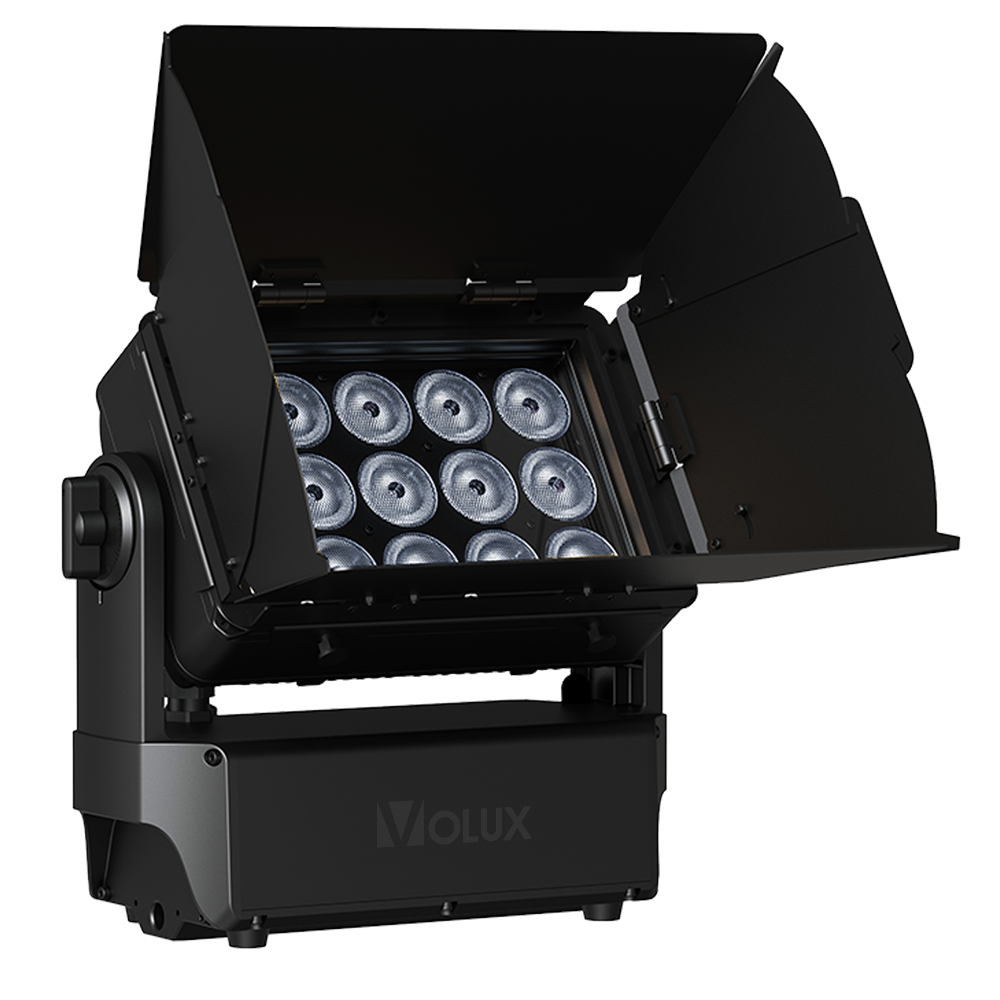

• Optional Barndoor Attachment
• W-DMX / CRMX Wireless Control
• Hardline DMX via 5-Pin XLR Connection
• Vision Control App Operation via Bluetooth
• Up to 20 Hours Battery Operating Time w/ User Selectable Timeout
• AC Power Operation via PowerCON TRUE1 IN/THRU Connection
• Fanless Design, Silent Operation

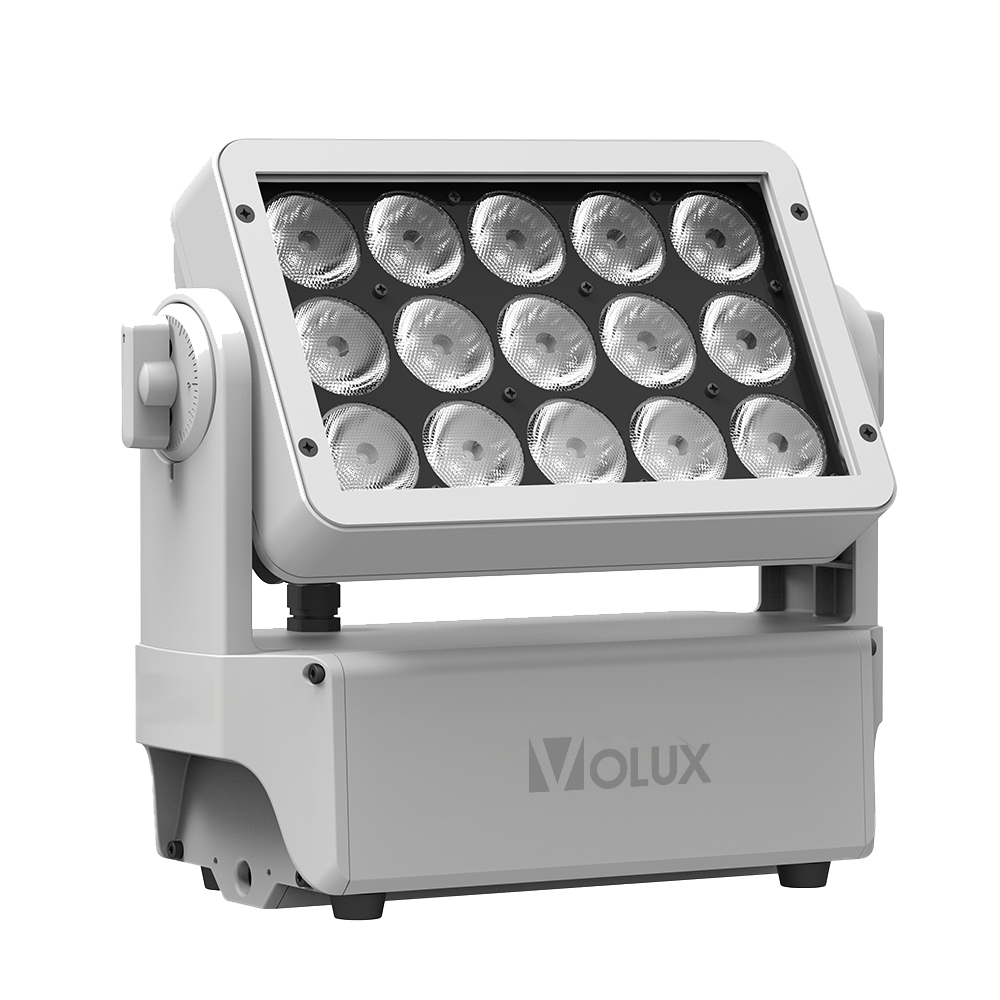

• Optional White Body
• Custom RAL Colors via Special Order
Physical:
Width: 13.4″ / 342mm
Depth: 5.7″ / 147mm
Height: 11.3″ / 288.5mm
Net Weight: 17.6lbs / 8kg
Electrical:
LED Engine: 15 x 20W RGBL
Power Consumption: 160W
Battery Capacity: 20,800 mAH
Voltage: 120-240V AC / 21.5V Battery
Technical Specifications
Optical
- Source: 15 x 20W 4-in-1 RGBL LED
- Lumens: 5,500~
- Source Life Expectancy: 50,000 Hours
- Beam Angle: 10°
- Field Angle: 20º
- TM-30: TBA
- CRI: TBA
- TLCI: TBA
- Selectable PWM: 600, 1,200, 2,000, 2,400, 6,000, 18,000, 25,000 Hz
COLOR SYSTEM
- Color Mixing: RGBL
- Color Temperature Control: 2,800 – 10,000K
- Color Wheel: Virtual Gel Swatchbook
- Macros: Built-In Color Scroll/Fade with Speed Adjustment
DYNAMIC EFFECTS
- Dimming Resolution: 16-bit Dimming
- Dimmer Curves: 4
- Stand-Alone Mode: Selection of Static Color
- Built-in Automated Programs: Yes
- Sound Active Mode: Yes
- Master/Slave Mode: Wired or Wireless
- Shutter/Strobe: 1 – 20 Hz
BATTERY
- Battery Capacity: 20,800mAH
- Battery Voltage: 21.5v
- Runtime: Up to 20 Hours*
- Recharging Time: 8 Hours
- User Selectable Run Time: 5-20 Hours
- Shutter/Strobe: 1 – 20 Hz
Control
- Protocols: DMX512, W-DMX, CRMX, Bluetooth
- DMX channels: | 6 | 9 | 10 ch
- Wireless: LumenRadio CRMX
- Stand-Alone, Master/Slave, Modes
- Display: OLED w/ Touch Capacitive Buttons
- LED Color Calibration: Yes
Electronics
- Dimmer: 16-bit linear 0 ~ 100% electronic dimmer
- Strobe / Shutter: 1 – 20 Hz, electronic
- Operating Temperature: -4 °F ~ 113 °F
- LED Control: Adjustable PWM, flicker-free operation
Electrical
- Power Supply: 100-240V – 50/60Hz
- Max Power Consumption: 160W / 1.3A @ 120V
- Power factor: >0.96
- Max Power Linking (120V): 12
- Max Power Linking (208V): 18
- Max Power Linking (230V): 20
Physical
- Ingress Protection Rating: IP65, outdoor/wet
- Cooling: Convective Heatsink
- Signal connection: 5-Pin XLR IN/THRU
- Power connection: TRUE1 Compatible SeeTronic IP65
- Dimensions (WxHxL): 13.4″ x 11.3” x 5.7”
- Weight: 17.6lbs / 8kg
What’s Included
- CUEWASH 300B
- TRUE1 IP65 Main Power Cable
- 5-Pin DMX XLR Cable
- Omega
Optional Accessories:
- 30º Magnetic Diffuser Lens
- 60×10º Magnetic Diffuser Lens
- Barndoors
- 4 Unit True1 Breakout Charging Flight Case
- Power Linking Cables
Optional Upgrades:
- White Housing
- Custom RAL Color
