FLARIS 400 Wash

DISCONTINUED

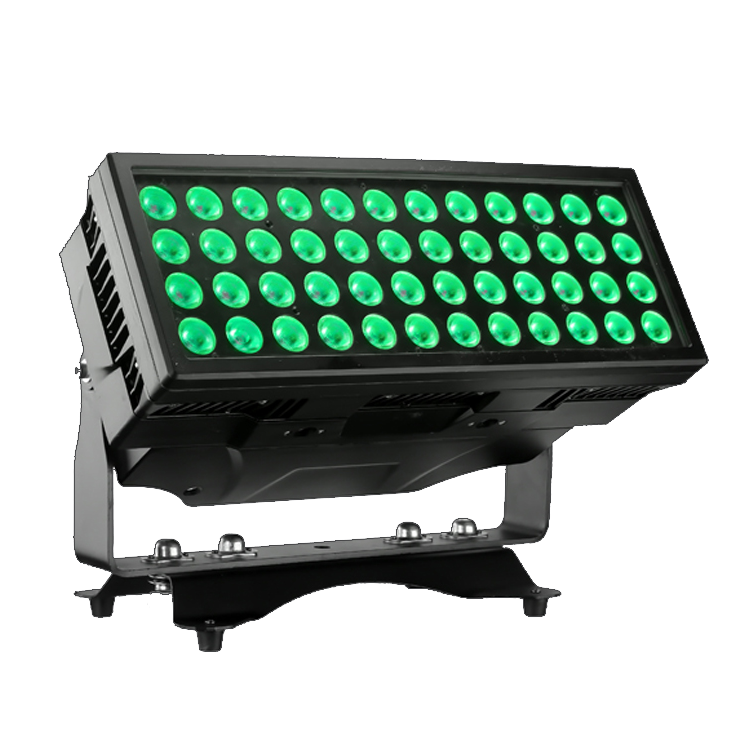

FLARIS 400 is an IP65 outdoor-rated full-color LED wash light designed to deliver intense brightness and vibrant colors in wash, strobe, or blinder capacity. It features 48x10W RGBW LEDs for over 14,000+ lumens of output. A standard 25º beam angle delivers uniform output with seamless color mixing along with a high-speed strobe and multiple dimmer curves for a variety of applications. FLARIS allows for multiple mounting options and includes a floor-standing bracket attachment for easy flexible deployment. The robust housing can resist any outdoor elements it comes across and is available in a fixed-install variant for permanent architectural applications.

Technical Specifications

Optical

  • Source: 48 x 10W RGBW LED
  • Luminous Flux: 14,400+ lm
  • Source Life Expectancy: 50,000 Hours
  • Beam Angle: 25°

COLOR SYSTEM

  • Color Spectrum: RGBW
  • Color Wheel: Virtual
  • Macros: Built-In Colors with Speed Adjustment



DYNAMIC EFFECTS

  • Dimming Resolution: 16-bit Dimming
  • Dimmer Curves: 4
  • Stand-Alone Mode: Selection of Static Color
  • Sound Active Mode: N/A
  • Master/Slave Mode: Yes
  • Shutter/Strobe: 1 – 25 FPS



BODY

  • Body: Die-Cast Aluminum
  • Body Color: Black

Control

  • Protocols: DMX512, RDM
  • DMX channels: 6 / 16 CH
  • Stand-Alone, Master/Slave Modes
  • Display: Full-Color high-resolution LCD display

Electronics

  • Dimmer: 16-bit linear 0 ~ 100% electronic dimmer
  • Strobe / Shutter: 1 – 25 Hz, electronic
  • Operating Temperature: -4 °F ~ 113 °F
  • LED Control: Adjustable PWM, flicker-free operation

Electrical

  • Power Supply: 100-240V – 50/60Hz
  • Max Power Consumption: 400W
  • Power factor: >0.96

Physical

  • Ingress Protection Rating: IP65, outdoor/wet
  • Cooling: Forced Air Heatsink
  • Signal connection: 5-Pin XLR IN/THRU
  • Power connection (standard): TRUE1 Compatible SeeTronic Powerkon IP65
  • Power connection (fixed install): Neutrik PowerCON TRUE1 TOP (sealed pigtail)
  • Dimensions (WxHxL): 18.3″ x 12.7” x 8.3”
  • Weight: 27.5lbs / 12.5kg

What’s Included

  • FLARIS 400 Wash
  • SeeTronic IP65 Power Cable
  • 5-Pin XLR Cable
  • Omega Bracket
  • Adjustable Yoke
  • Floorstand Attachment

Optional Accessories:

  • Power Linking Cables
  • 8-Unit Flight Case
  • 4-Unit Flight Case



Support & Documentation

Specifications

User Information

DMX Personalities
